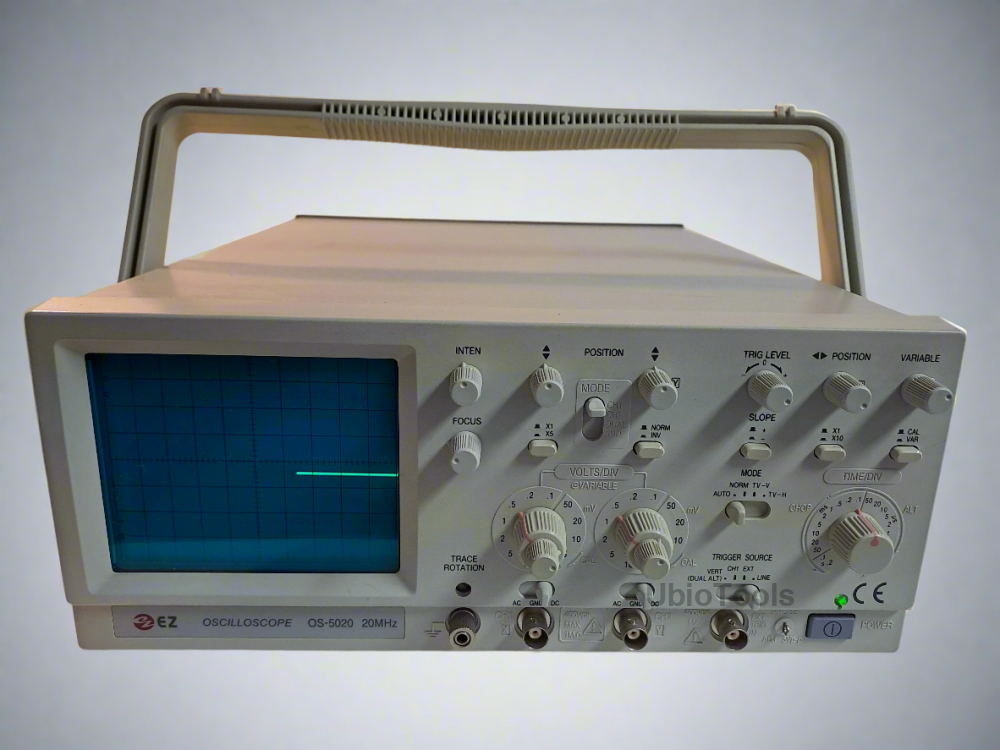

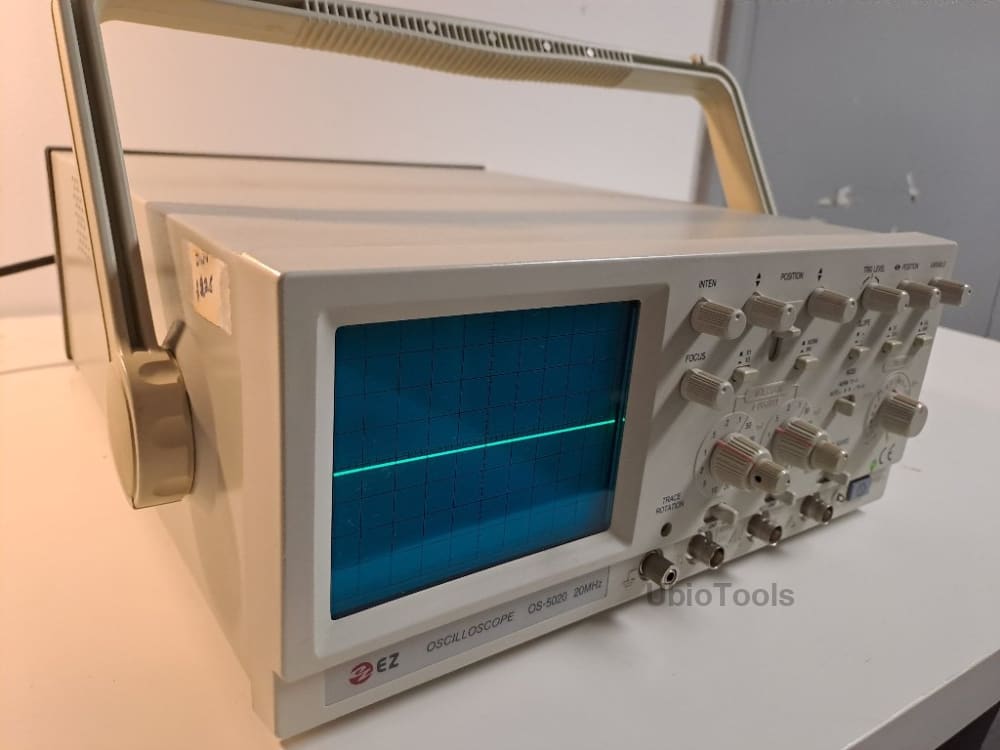

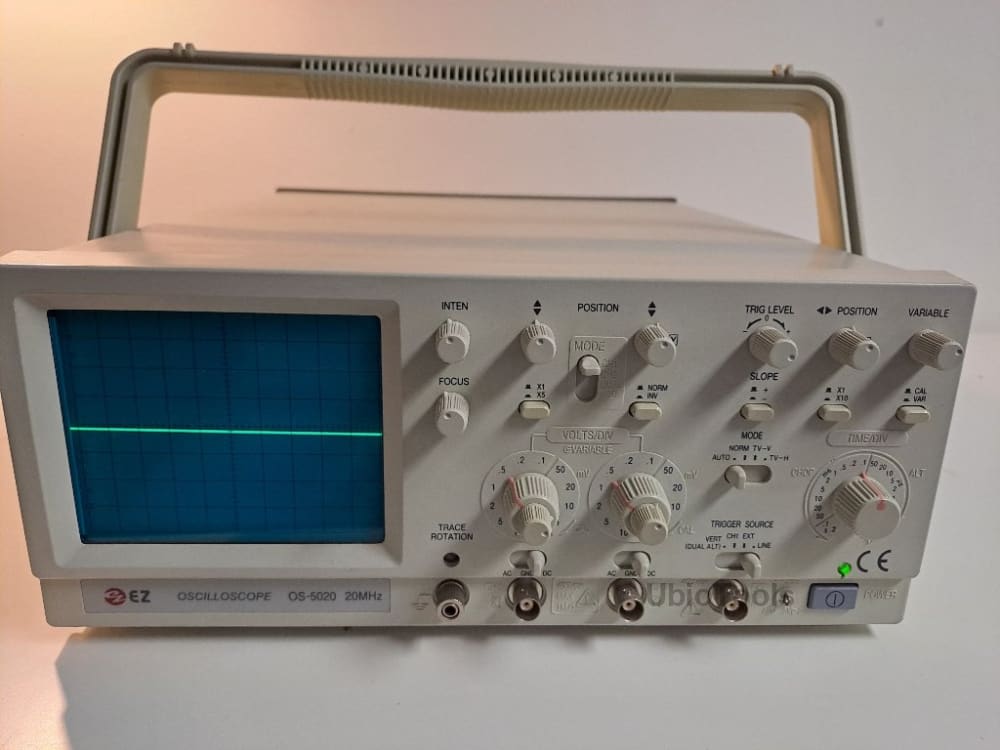

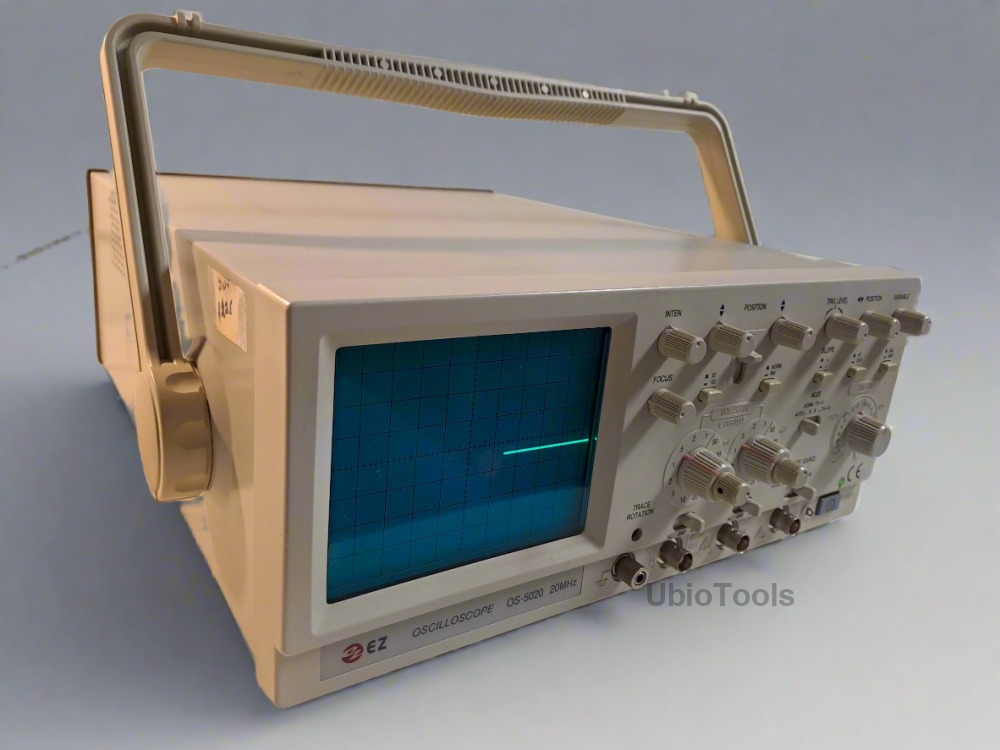

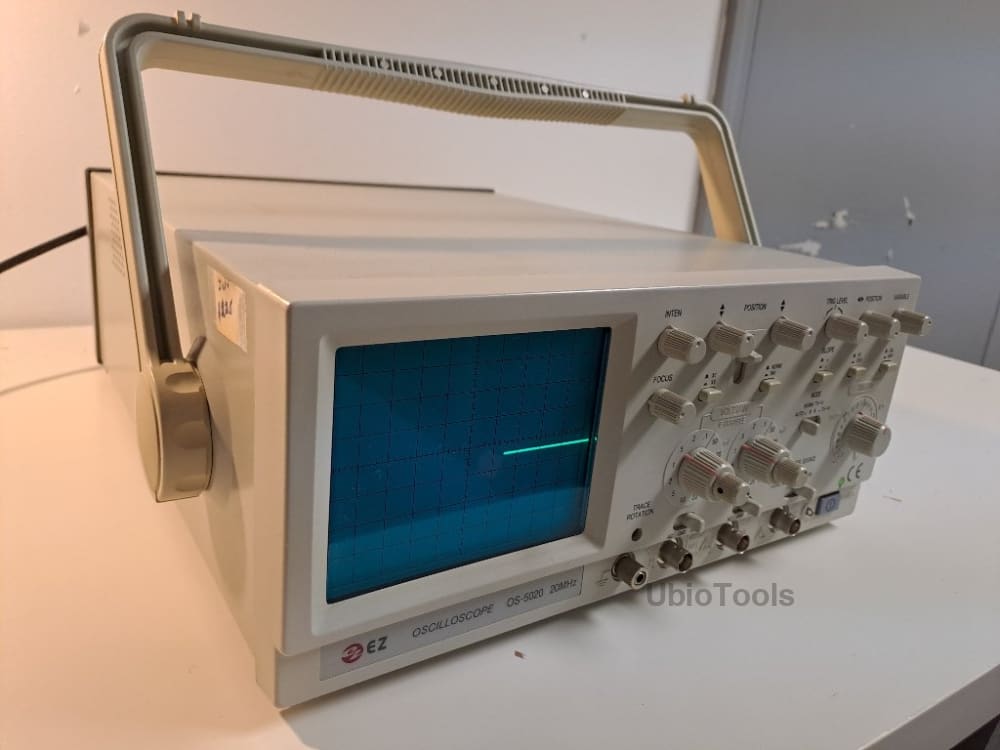

OS-5000 series are a portable kind of oscilloscope for two traces. The bandwidth of 20MHz is 0-----20MHz and 30MHz is 0~30MHz. Its vertical deflection factor is 5mV/div and to lmV/div by Magnification. Full bandwidth sweeping circuit is used in the sweeping system. The flexible and convenient triggering mode has the functions for selecting signals from one channel or triggered by Ext signals. And there is another function of ALT trigger to observe signals from two irrelative channels.
The instrument has the functions of TV-H, TV-V synchronization and trigger-lock to observe all kinds of signals stably. And from the terminal for trigger input, CHl and CH2 signals can be output along with the triggering channel to connect the Ext frequency counter. 15MHz has the lowest rate of 1 Os/div and the longest time is 250s every time.

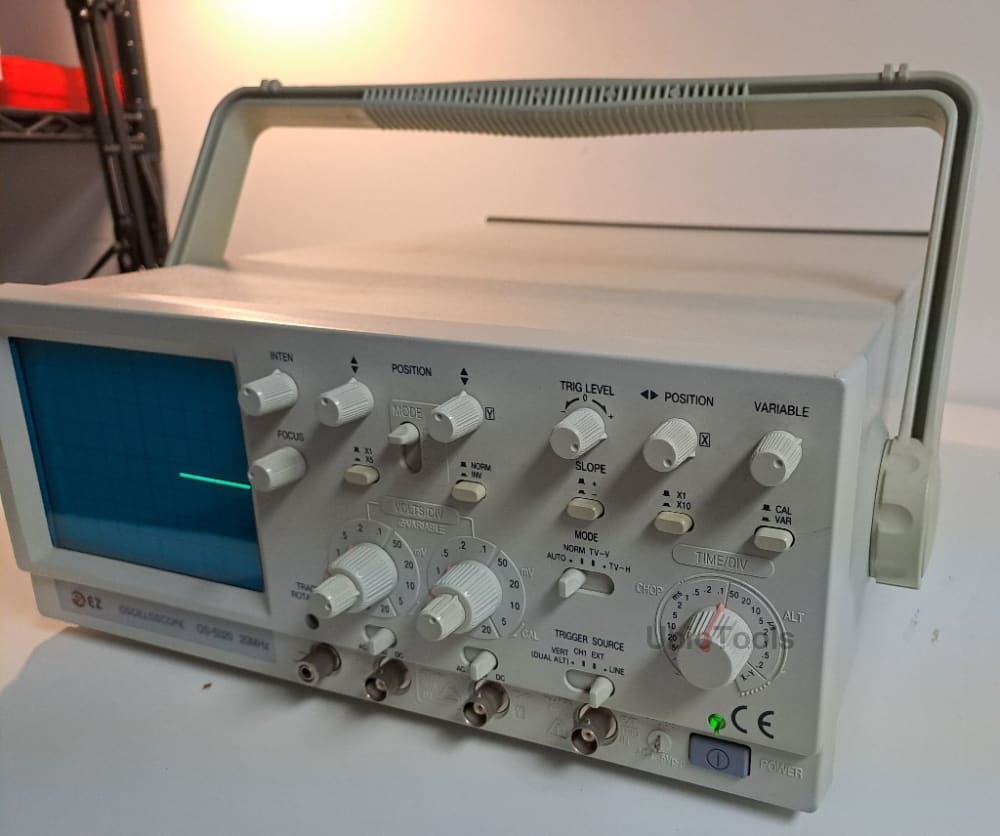

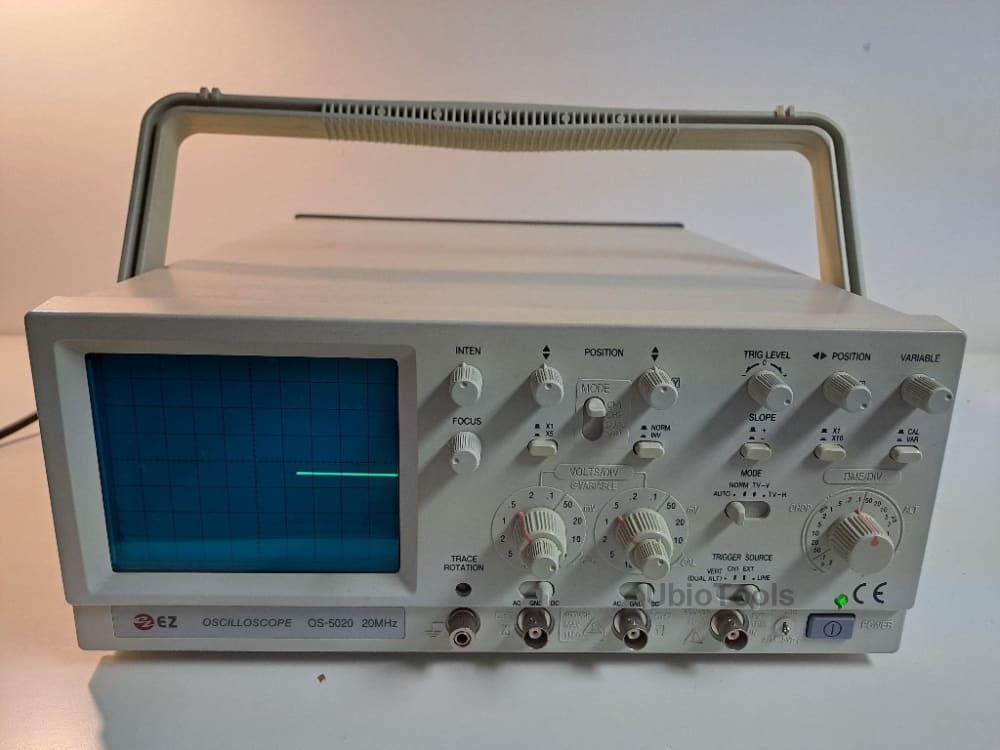

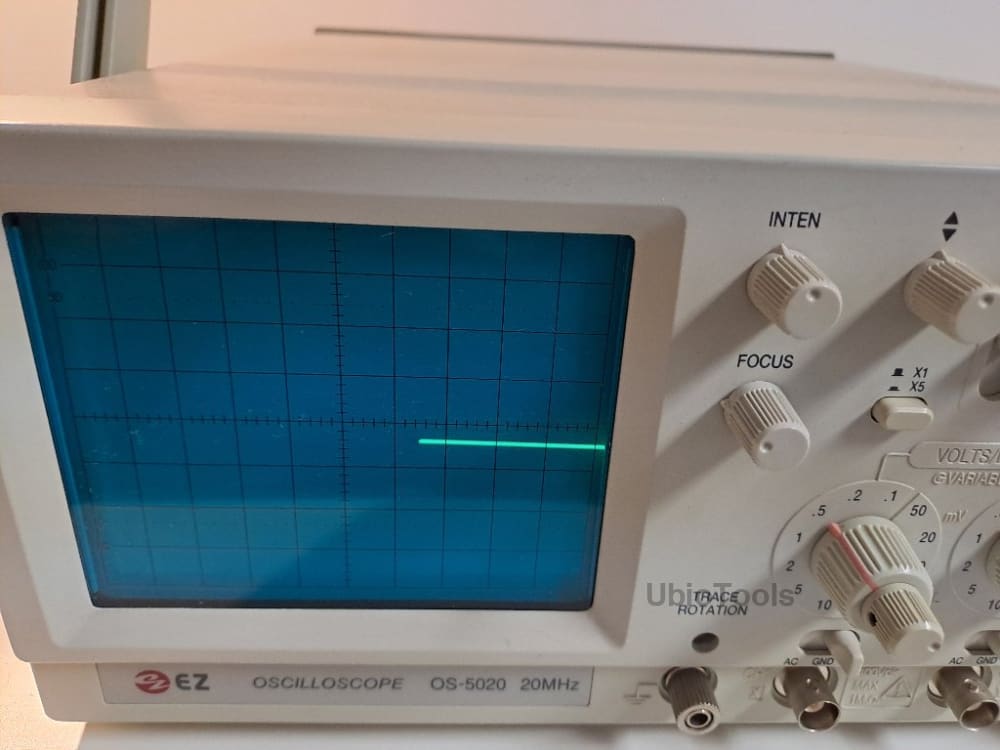

Comments:This item was removed from a biotech company. It turns on. Was not fully tested. Cosmetically, looks in great conditions.
Condition: Good
Location: Miami, US
Weight (lbs / kg): 15.8 / 7.2
Dimension (in / cm): 12.59 x 5.11 x 15.74 / 32 X 13 X 40
