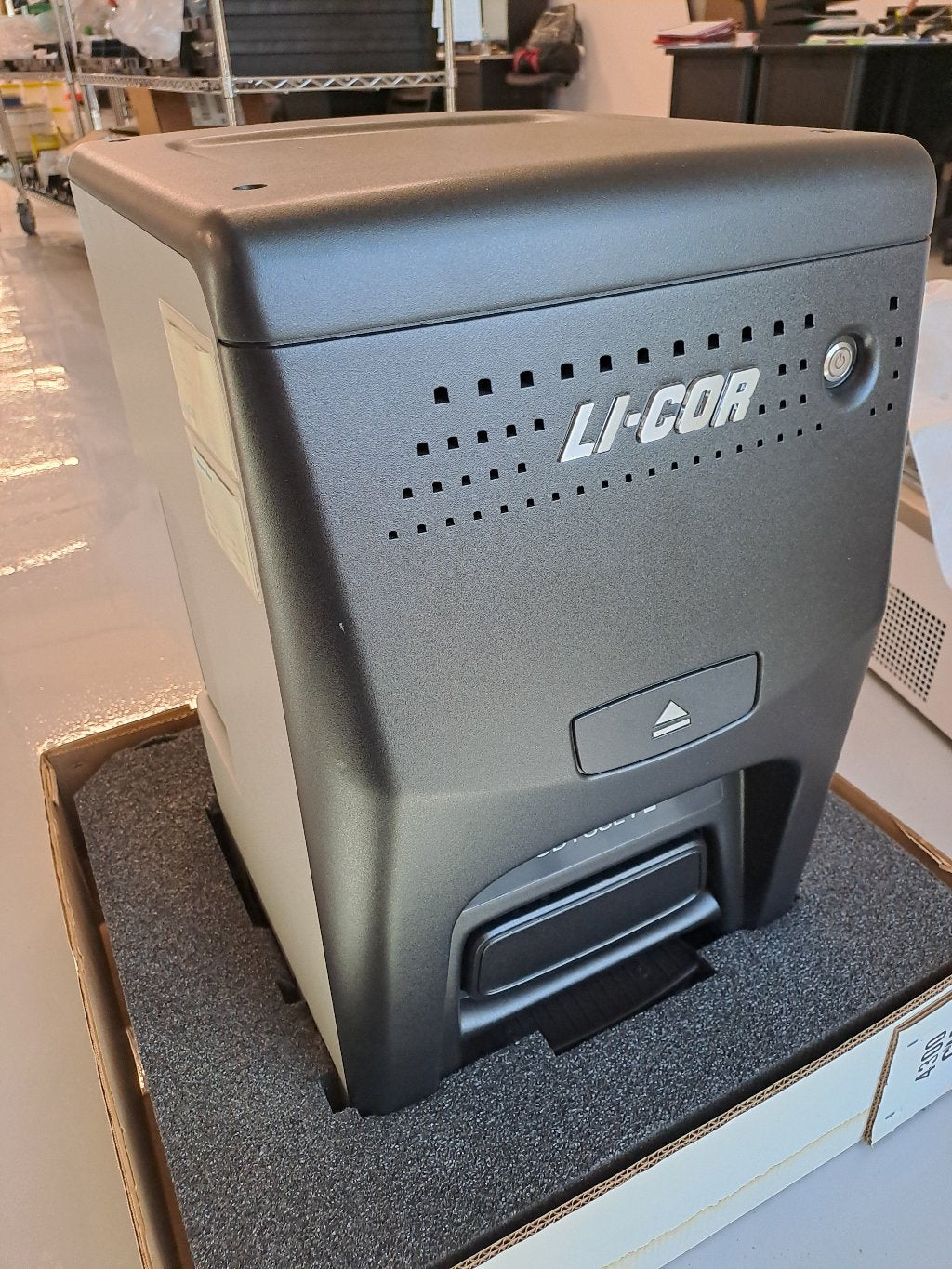

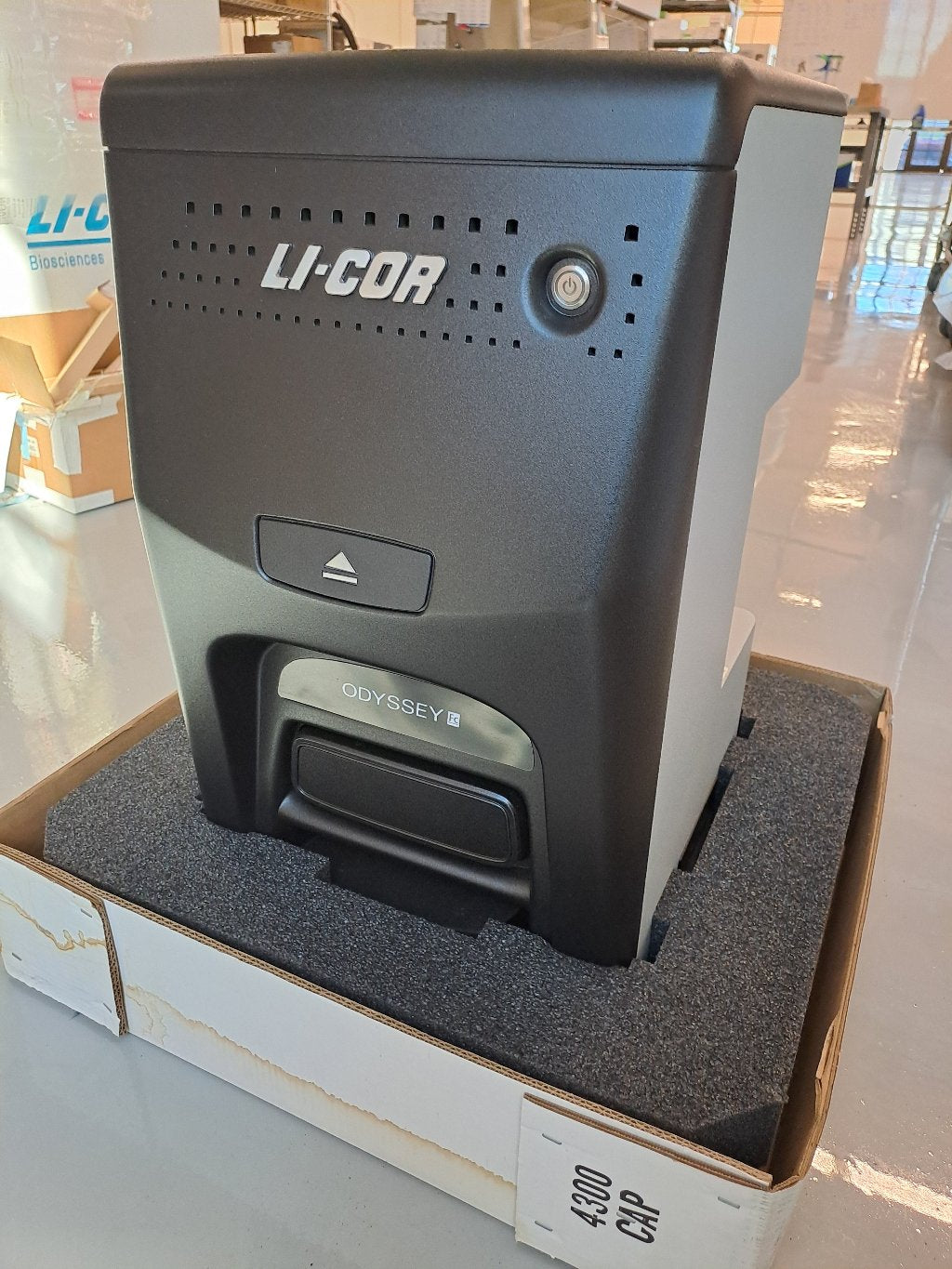

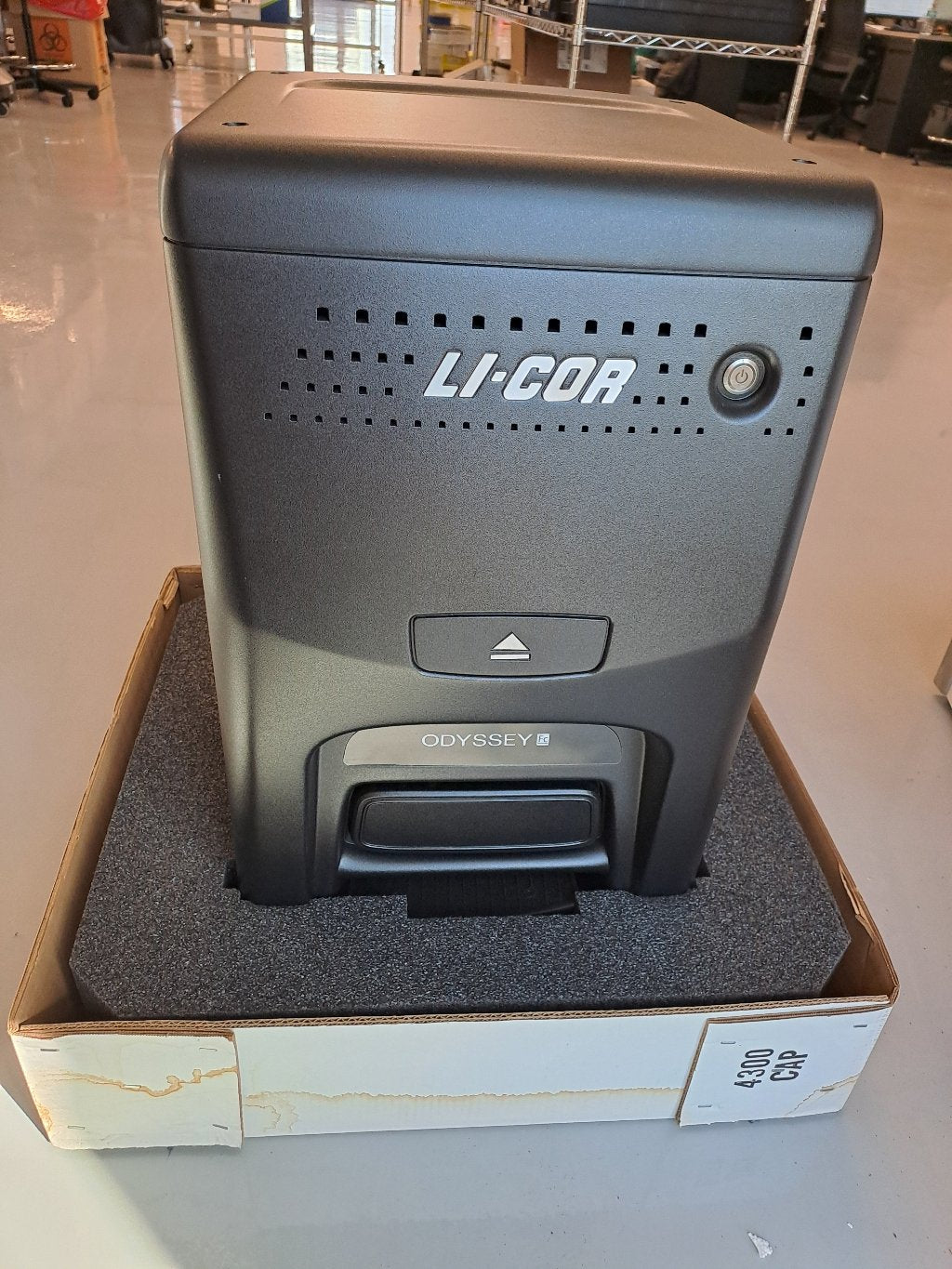

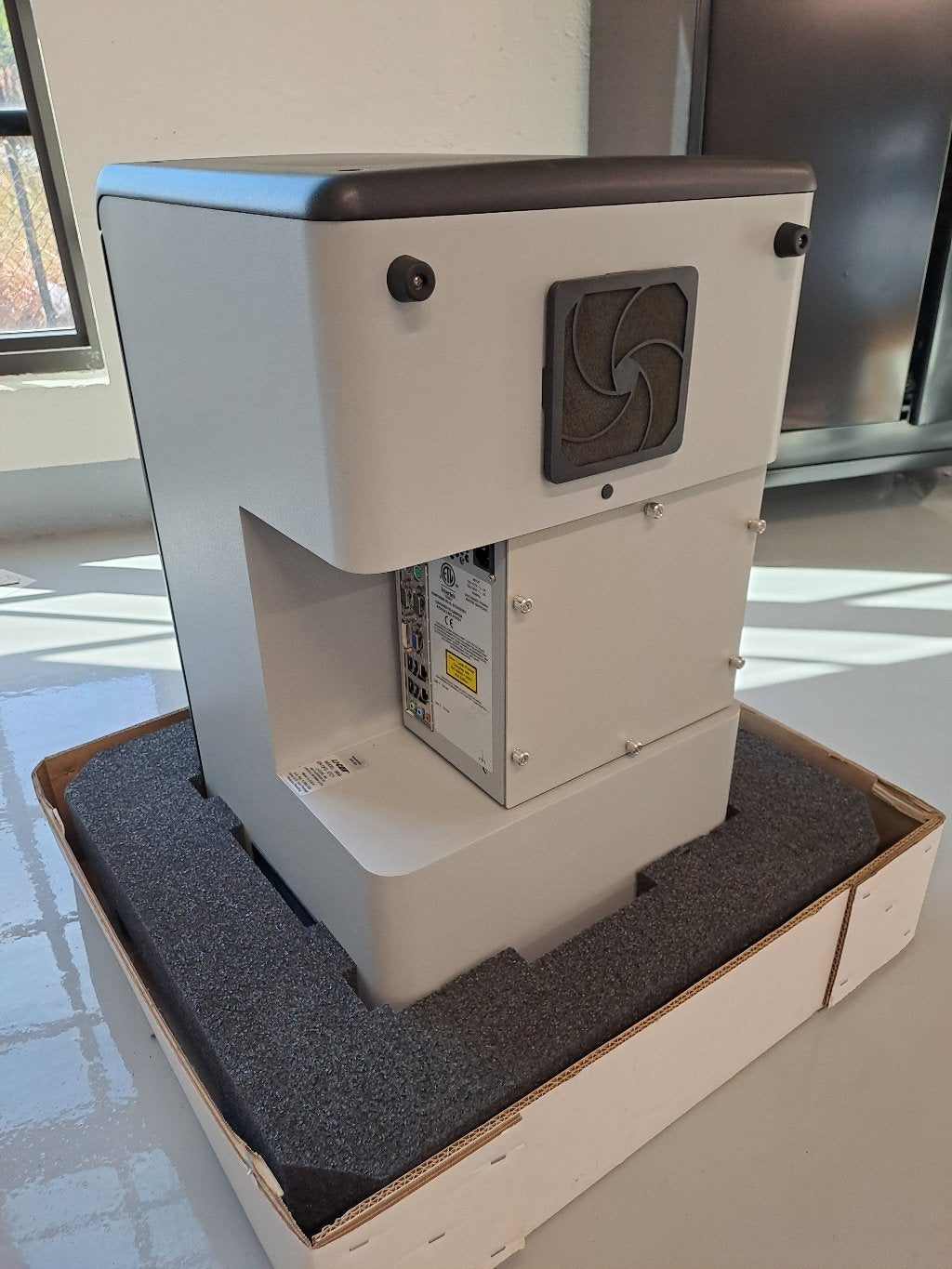

Li-Cor Odyssey Fc

The LiCor Odyssey FC Imaging System allows users to capture clear images and see in additional channels, with near-infrared and enhanced chemiluminescent capabilities. Users can use this flexible imager to document DNA Gels, detect multiple targets using a two-channel multiplex fluorescence, and image ECL and NIR all from the same instrument.

This Licor Western Blot System is optimized for applications in Near-Infrared Fluorescence and Chemiluminescence Western Blots and protein arrays, nucleic acid documentation, and coomassie protein gel documentation.The Odyssey FC uses the patented FieldBrite optics system, capturing a single, highly accurate image, to give you consistent results. The images are so clear and uniform, with low backgrounds, they use binning, don’t need image correction, or post-capture manipulation, giving you excellent reliability.

The results captured by the Licor imager are more reliable than others, with 6 logs of linear dynamic range (22bit) , and NIR signals that aren’t affected by timing. The Licor Odyssey FC uses image studio software to simplify image capture and helps organize data with a simple easy to use interface.

Features:
600 Channel Light Source: Light source at 520 nm
700 Channel Laser Source: Solid-state Laser Diode at 685 nm
800 Channel Laser Source: Solid-state Laser Diode at 785 nm
Laser Lifetime: 20,000 hours
Wavelength Maxima for Excitation/Emission Bands:
Ch:600 nm Ex: 520 nm Em: 600 nm
Ch:700 nm Ex:685 nm Em:730 nm
Ch:800 nm Ex:785 nm Em:830 nm
Chemiluminescence: none Visible
Dyes: Optimized for LI-COR® IRDye® 680RD and IRDye® 800CW reagents, and chemiluminescent substrates.

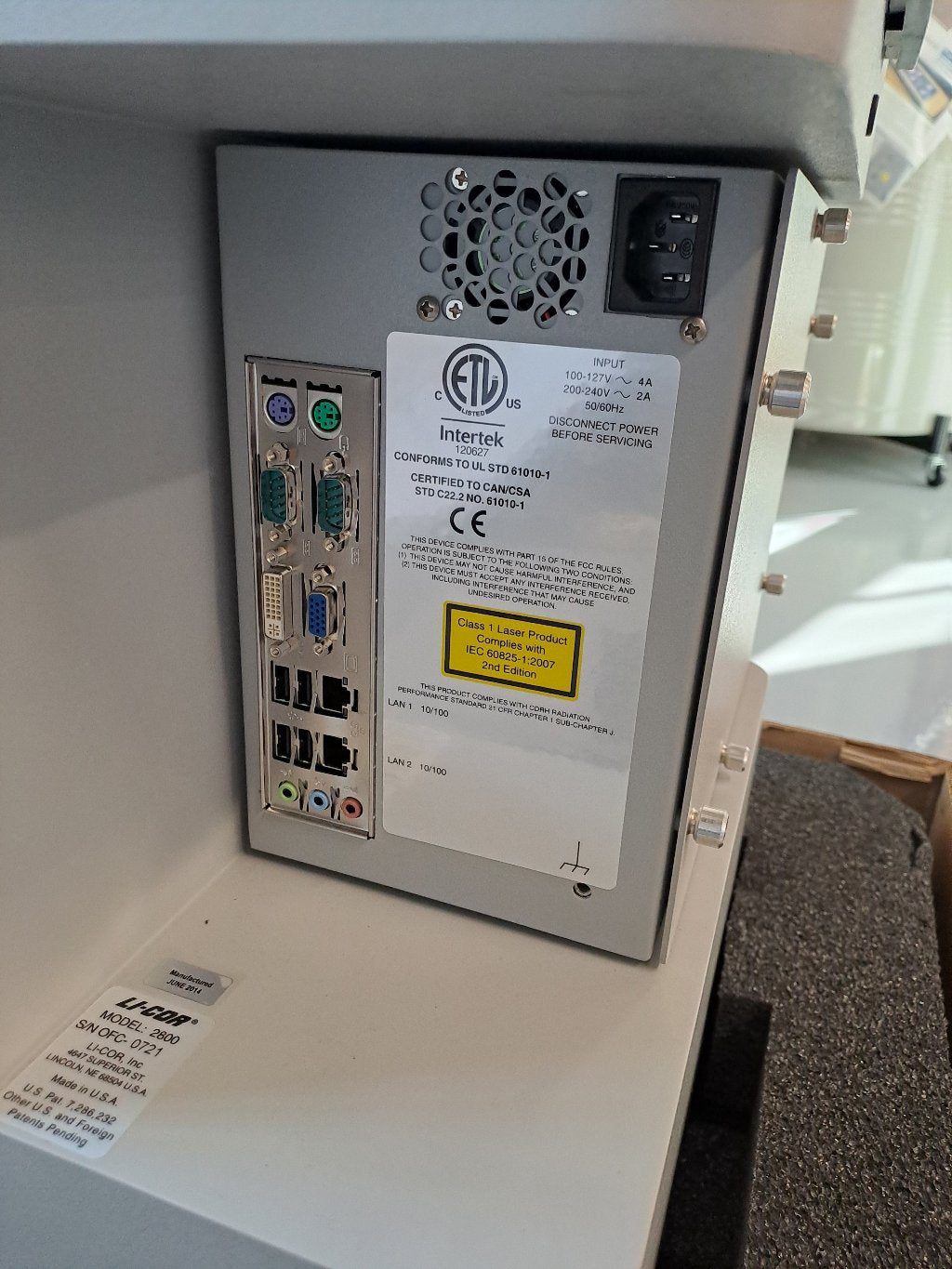

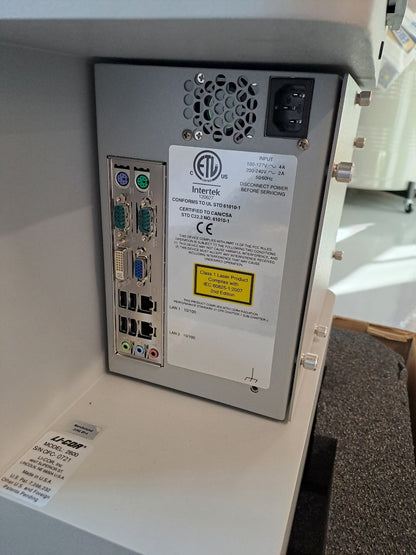

Specs:
100-127 VAC and 200-240 VAC
50/60 Hz; at 120V
4amp maximum; at 120V, 0.3 Amp typical when idle.
