This is an item in excellent condition purchased in mid 2021. Compare at new: $9800

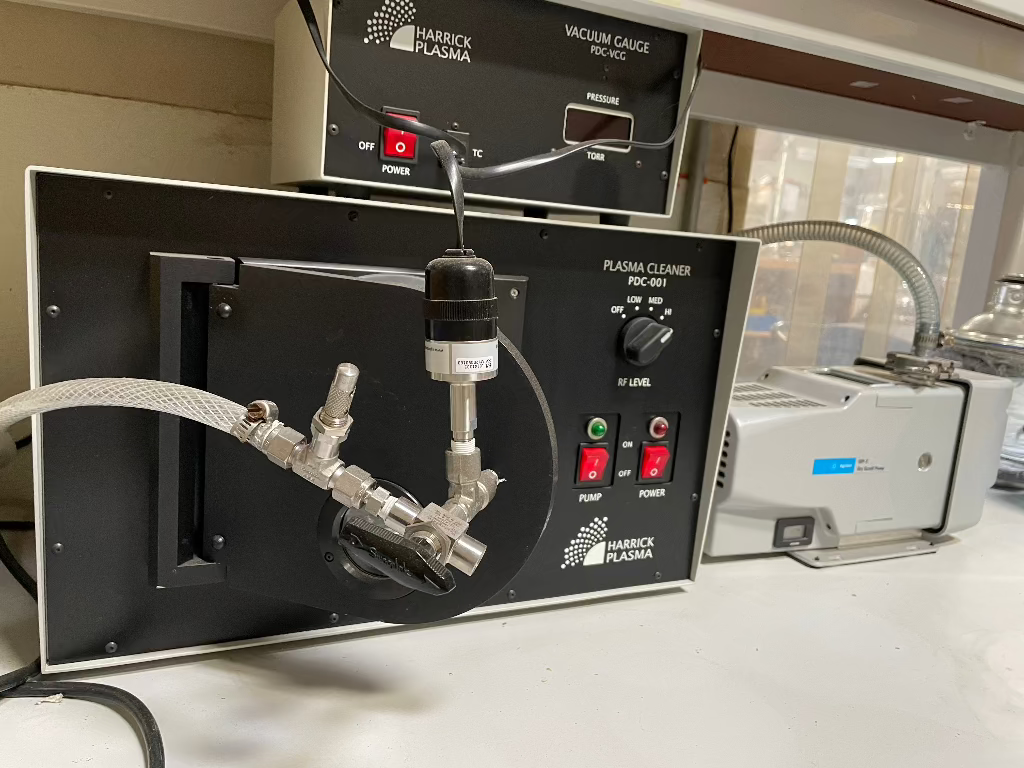

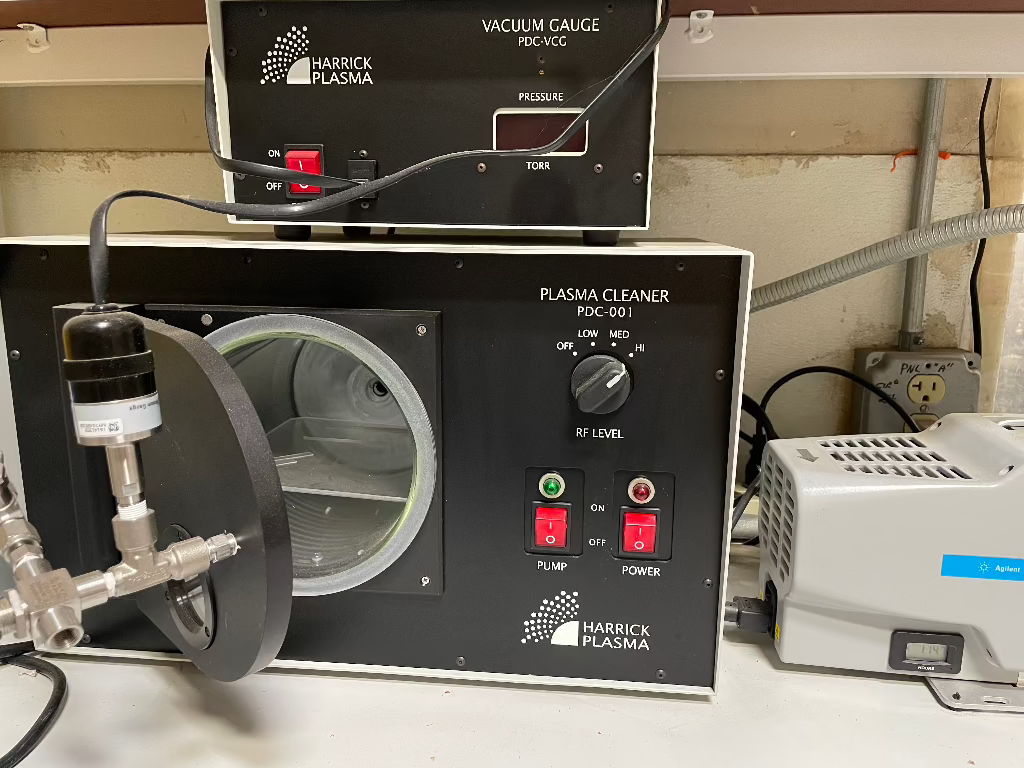

With twice the cleaning rate as the Expanded Plasma Cleaner, the High Power Expanded Plasma Cleaner is a versatile instrument, suitable for etching organic thin films (10-100 nm) as well as surface cleaning and modification.

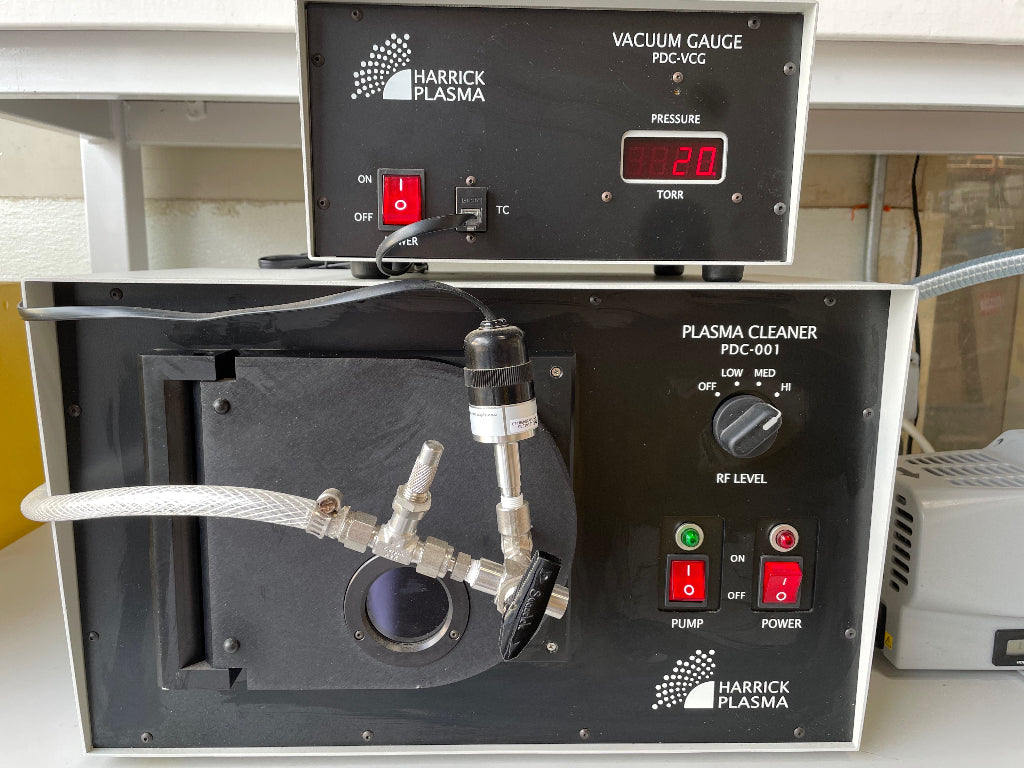

Thel PDC-VCG provides a vacuum gauge and digital meter as a stand-alone accessory and may be used with any of our plasma cleaner models. The ability to monitor vacuum pressure during plasma processing is beneficial for process repeatability and consistency.
Vacuum Gauge Features Thermocouple vacuum gauge sensor connects to plasma cleaner door Digital meter displays pressure range of 1 mTorr to 760 Torr ¼” OD hose adapter included to connect gas line to metering valve on plasma cleaner door

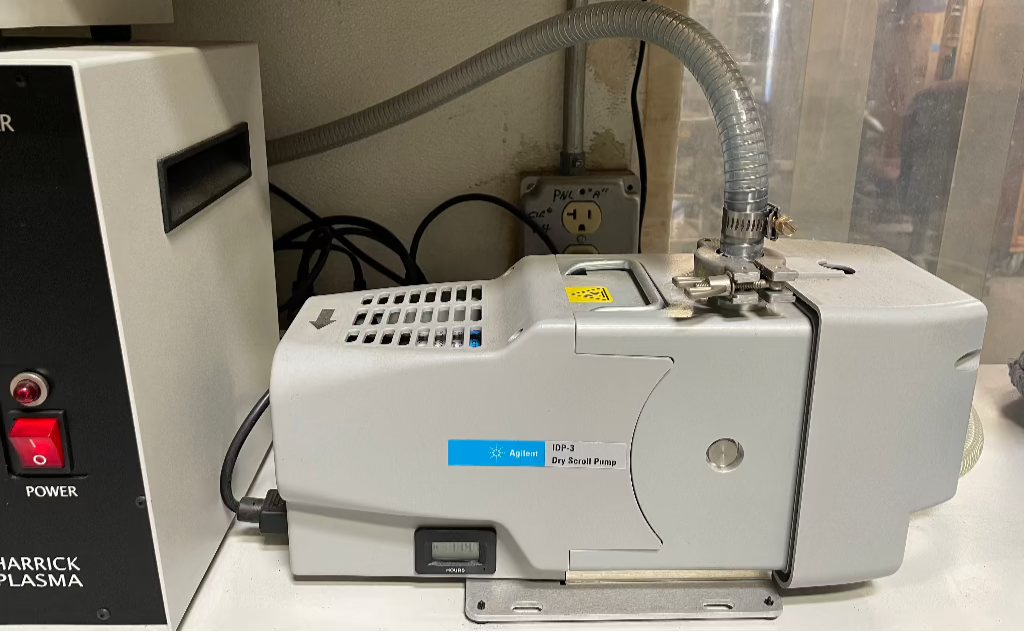

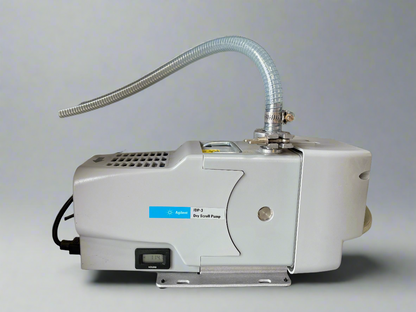

Economy Dry Oxygen pump Features PDC-OPE (115V) Our Plasma Cleaners require a vacuum pump with a minimum pump speed of 1.4 m3/hr (23 L/min) and an ultimate total pressure of 200 mTorr (0.27 mbar) or less. Suitable for pumping concentrated oxygen gas as well as nonreactive or inert gases (e.g. Air, N2, Ar). Does not use hydrocarbon oil (the combination of concentrated oxygen and hydrocarbon oil is an explosion hazard).
Pumping speed (50/60 Hz): 3.0/3.6 m3/hr Ultimate total pressure: 250 mTorr (pump manufacturer specification; in our lab tests, ultimate pressures of <100 mTorr were attained) Motor power (50/60 Hz): 120 W Pump inlet: includes hose, hose clamps, hose adaptor, centering ring and swing clamp to connect plasma cleaner to pump inle PDC-OPE-OLT

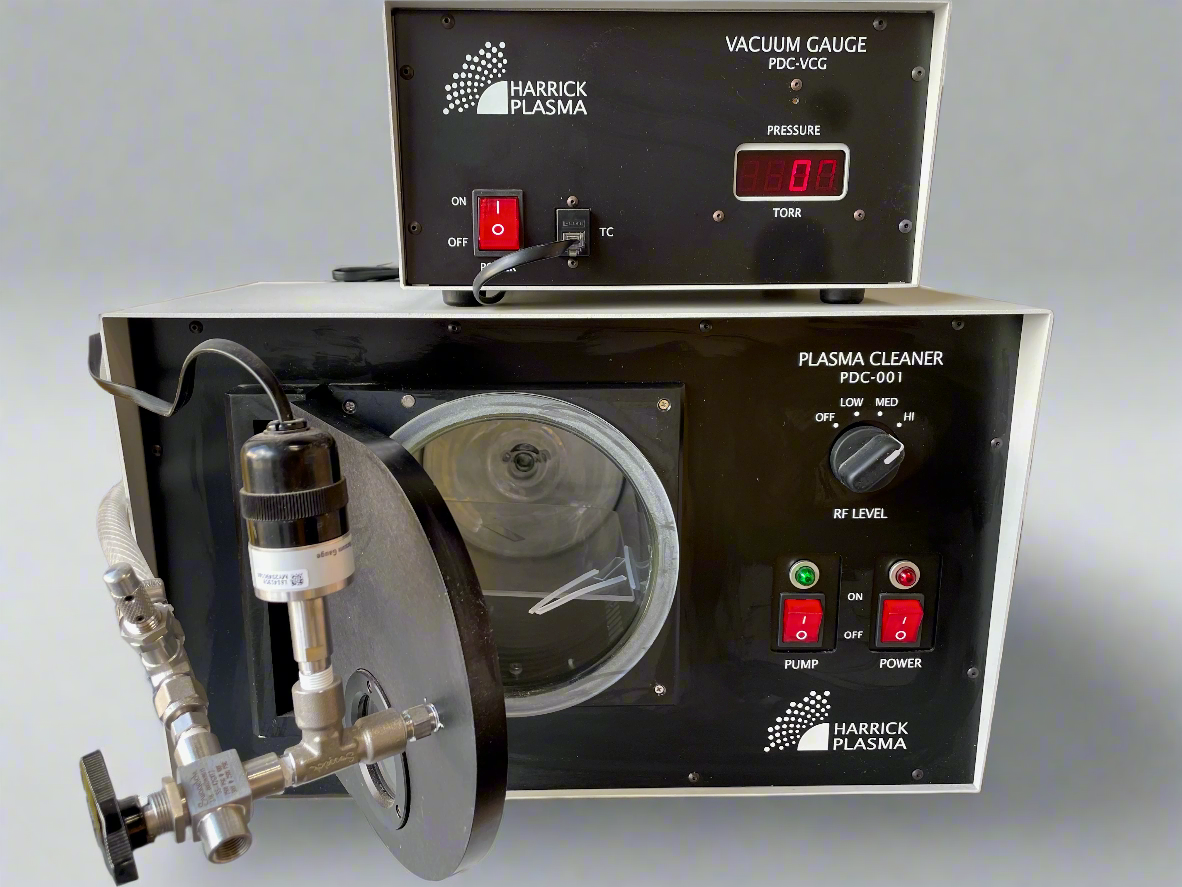

FEATURES: Larger, benchtop unit Adjustable RF power settings (Low, Medium, High) Maximum RF power of 45W Low RF power setting is equivalent to High RF power setting on PDC-001/PDC-002 Includes a 6″ diameter x 6.5″ length Pyrex chamber Hinged door with viewing window Active fan cooling Integral switch for a vacuum pump 1/8″ NPT metering valve to qualitatively control gas flow and vacuum pressure 1/8″ NPT 3-way valve to quickly switch from bleeding in gas, isolating the chamber, and venting
SPECIFICATIONS: Plasma Cleaner Weight: 37 lbs Size: 11″ H x 18″ W x 9″ D
Vacuum Gauge Weight: 5 lbs Size: 5″ H x 10″ W x 8″ D
Pump Weight: 21 lbs Size: 7″ H x 14″ W x 5.5″ D
Comments:Like New
Condition: Excellent
Location: Santa Barbara, CA
Weight (lbs / kg): 63 / 30
Dimension (in / cm): 26 x 42 x 22.5 / 67 x 107 x 58
