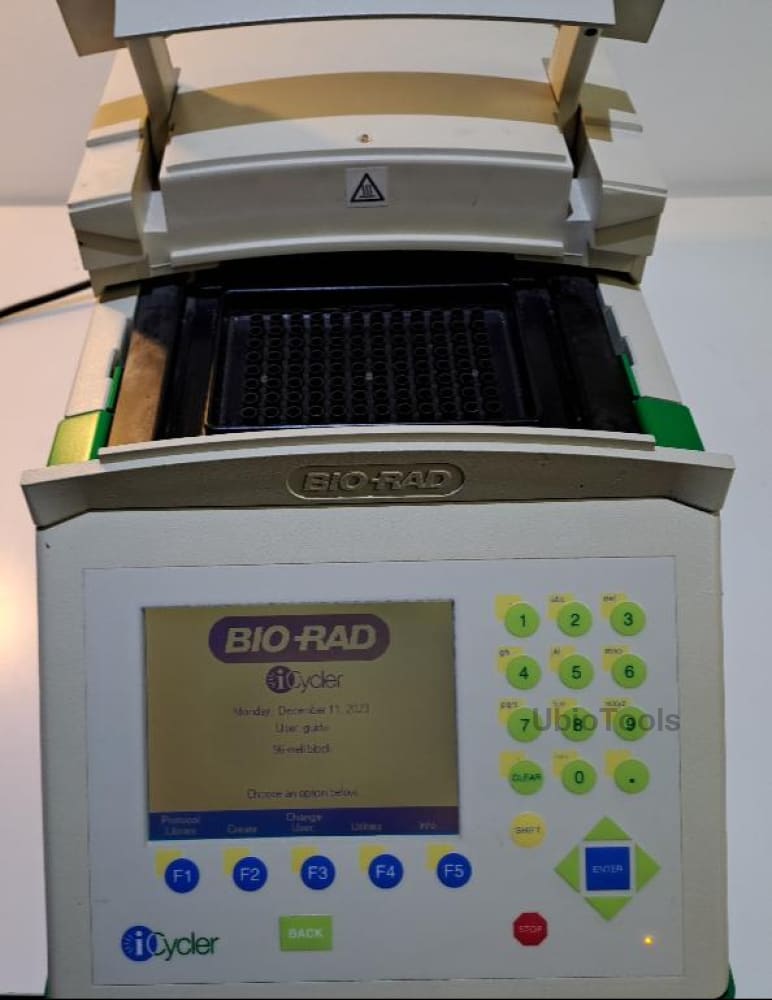

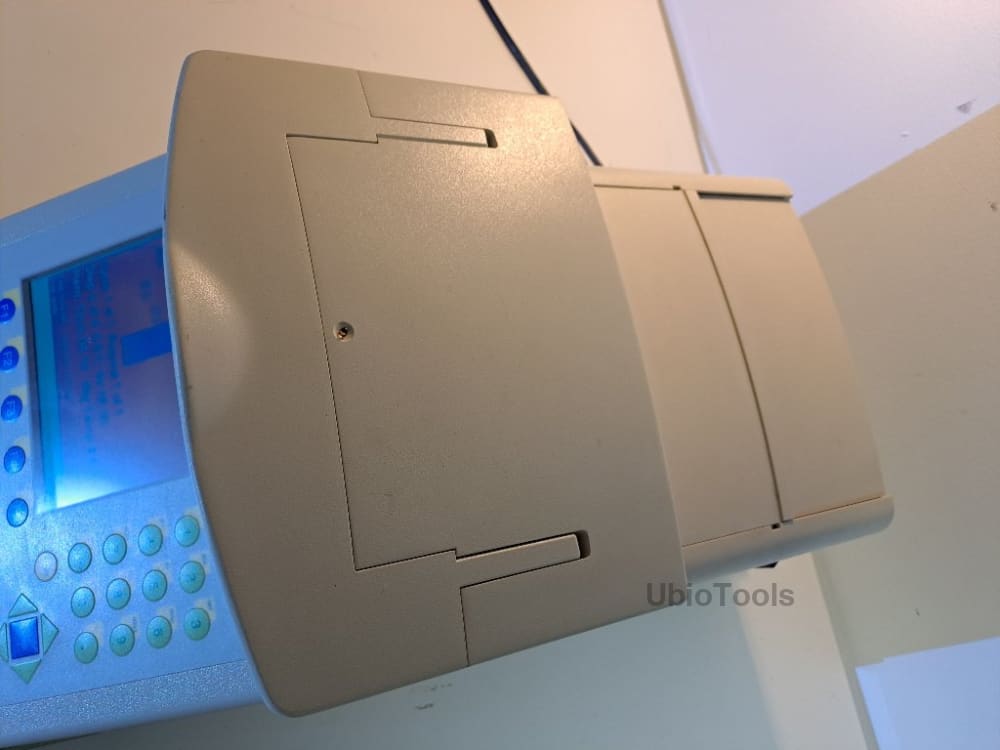

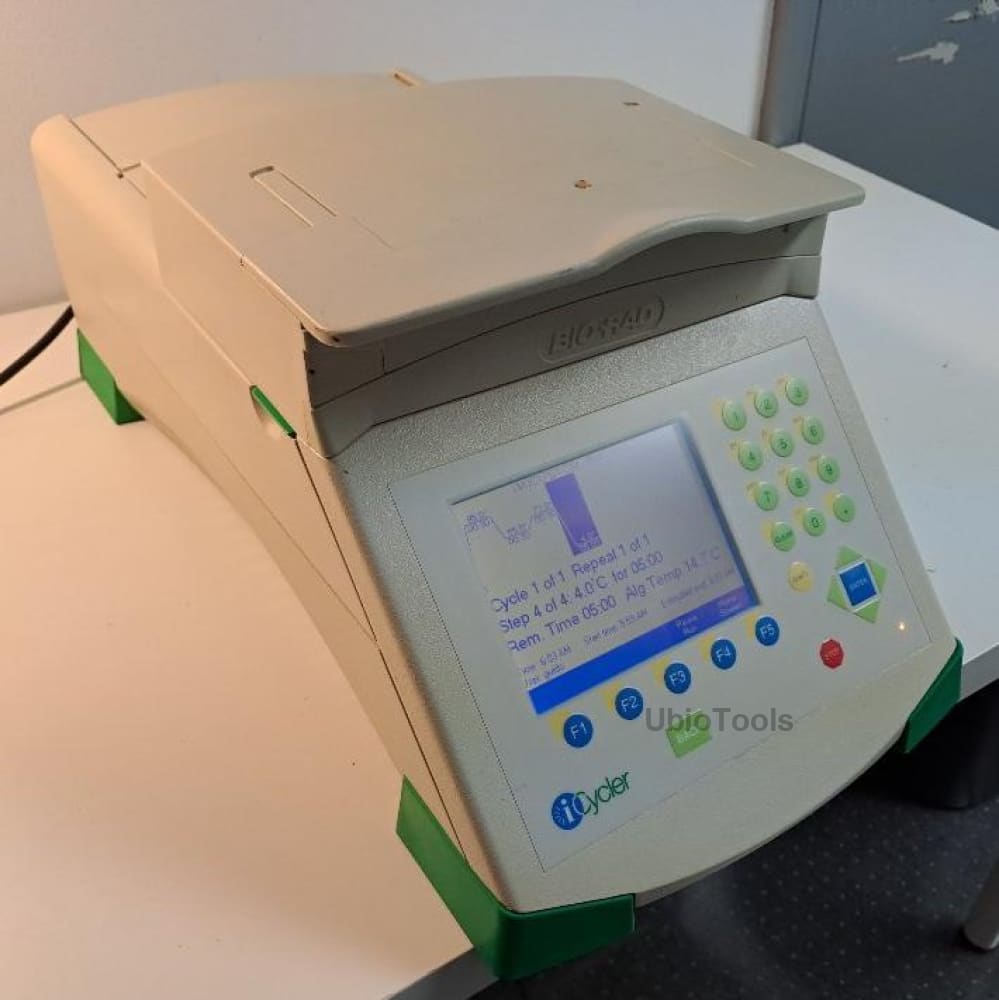

Thermocycler iCycler Biorad

 The iCycler thermal cycling instrument provides the optimum performance for PCR and other thermal cycling techniques.The iCycler incorporates a peltier driven heating and cooling system for superb thermal performance characteristics. See the Specifications section at the end of this manual for detailed information regarding the rates of heating and cooling, accuracy and uniformity of the thermal sample reaction module. Rigorous testing of thermal block temperature accuracy, uniformity, consistency and heating/cooling rates was conducted to insure reliable and reproducible experimental results.

Features:

• Graphical representation of protocols combined with standard language templates
• User-friendly software, including menu driven software, ready-made protocol templates and user-defined preference file.
• Direct modular upgrade to Real-Time PCR monitoring.

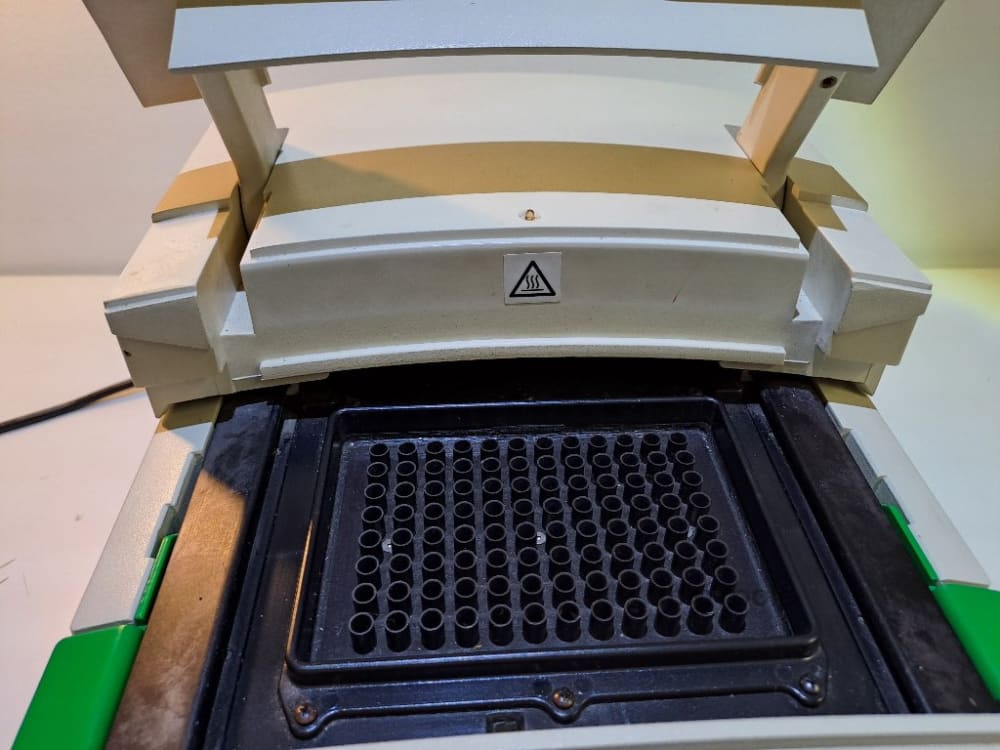

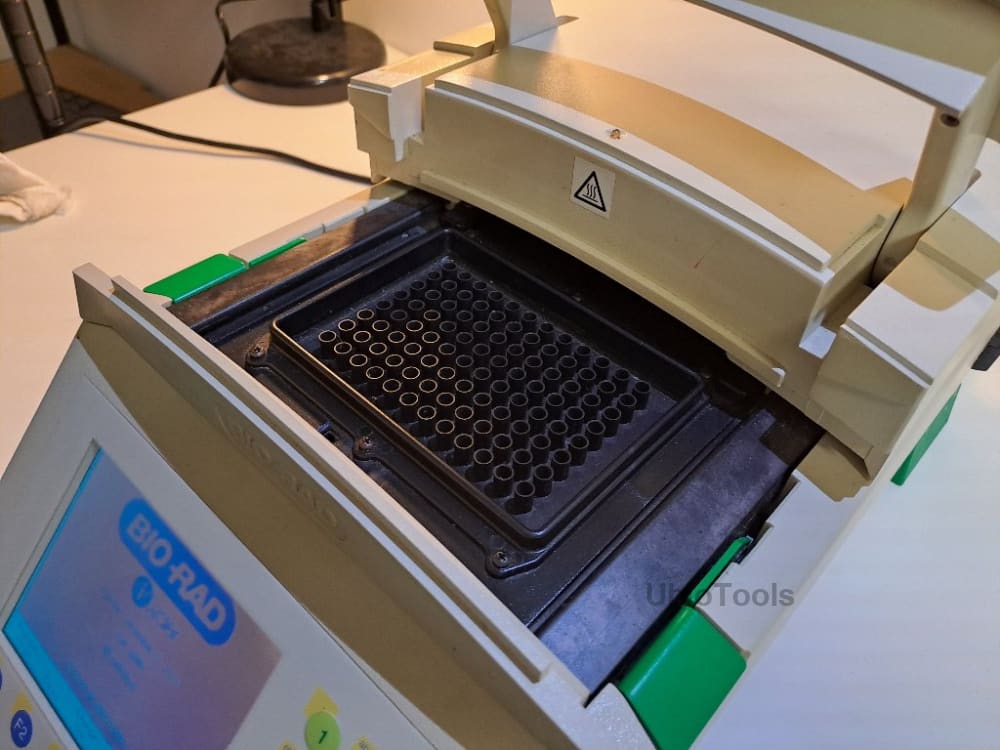

• Interchangeable reaction modules.

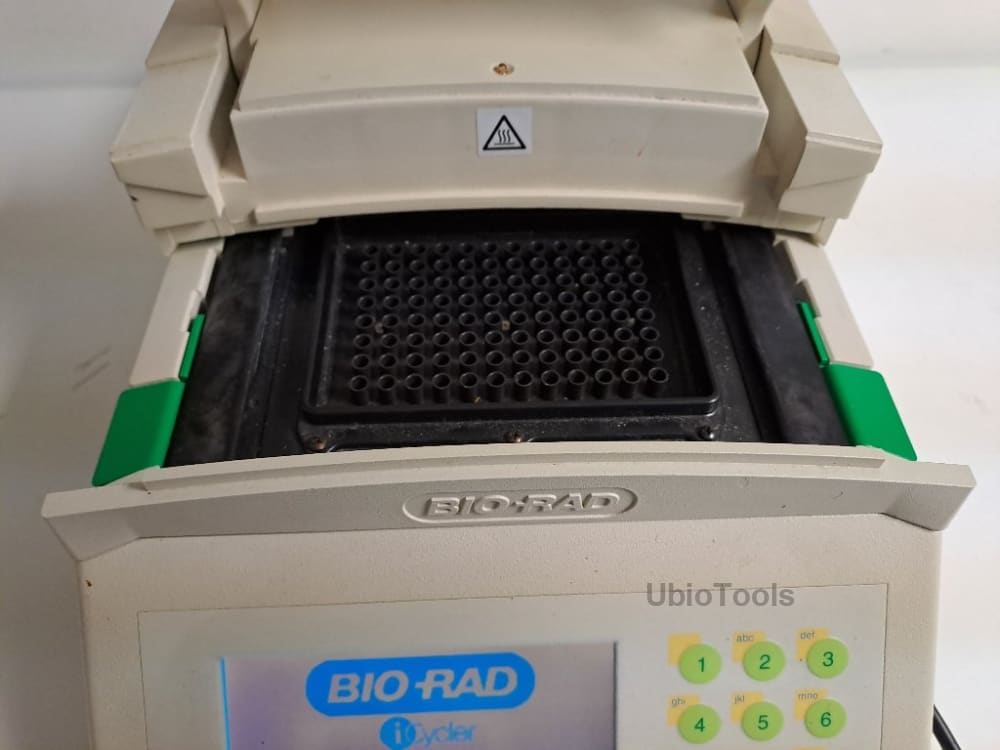

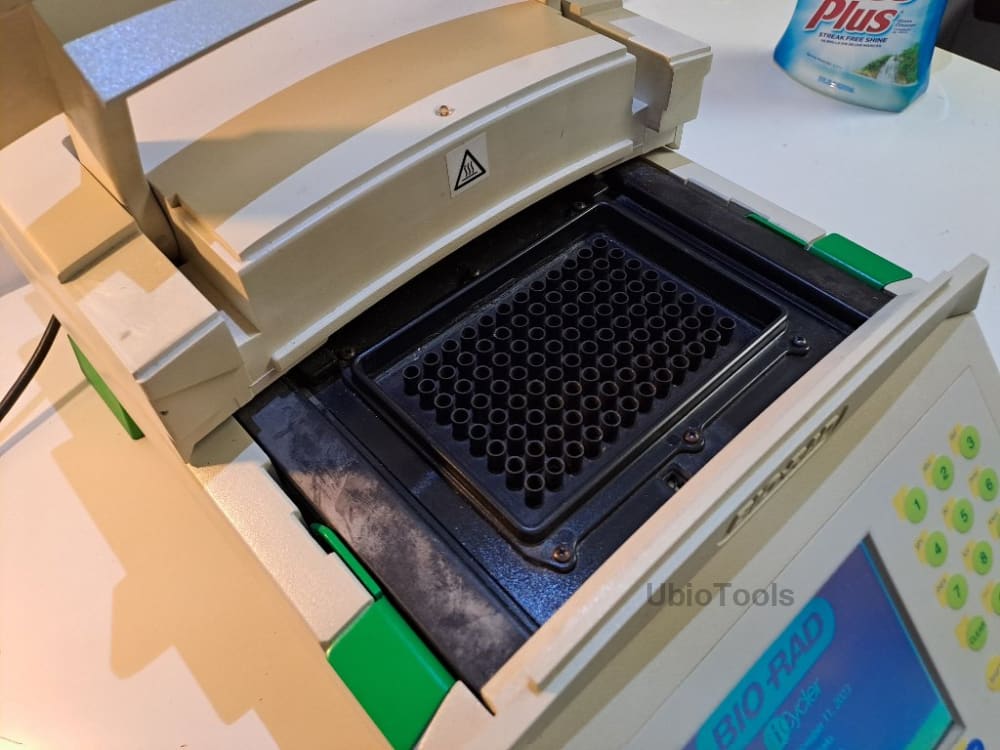

• Maximum sample flexibility; reaction modules accommodate 0.2-ml tubes, strips and 96-well plates, 0.5-ml tubes, and 384-well plates.
• Temperature monitoring and control can be specified by instrument algorithm, in-sampleprobe, or reaction module block mode.
• Optional security feature for protocols and folders.
• Run results report and validation report.
• NIST-traceable temperature performance.


Specs:

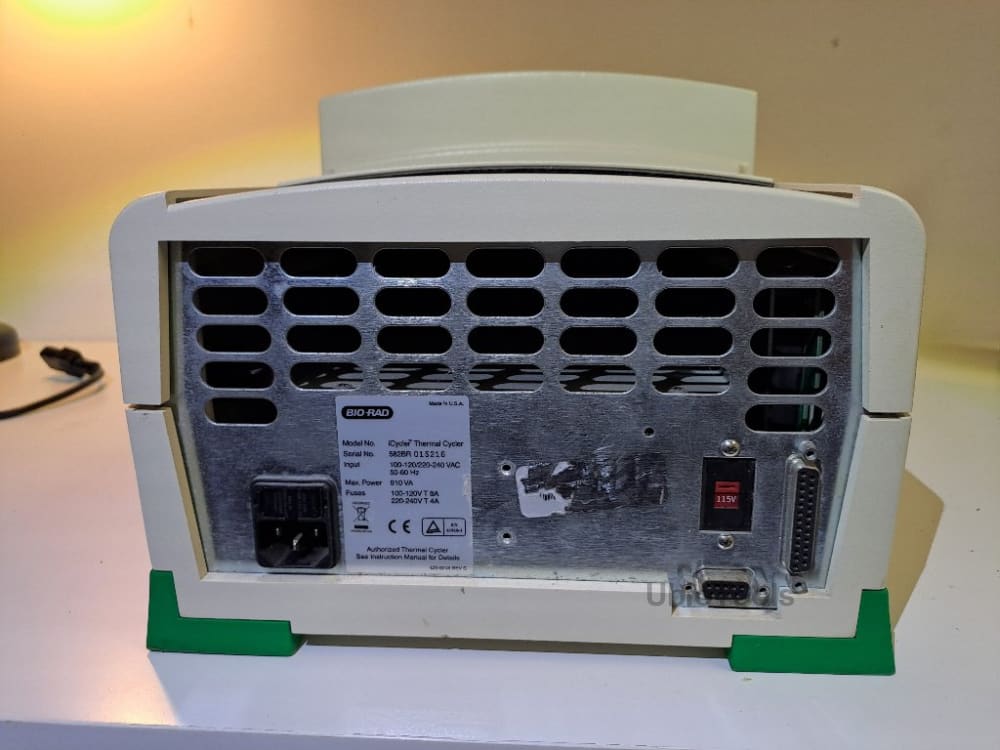

Input Power: 100--250 VAC ± 10% 50--60 Hz 250 VA max., 95W typical
Storage cooling less than 3 minutes to cool from 40°C to 4°C
Overshoot less than 0.5°C
Accuracy ±0.3°C to NIST traceable standard after 30 seconds at 90°C,
block mode
Uniformity Well-to-well uniformity of ±0.4°C within 30 seconds after
arrival at 90°C

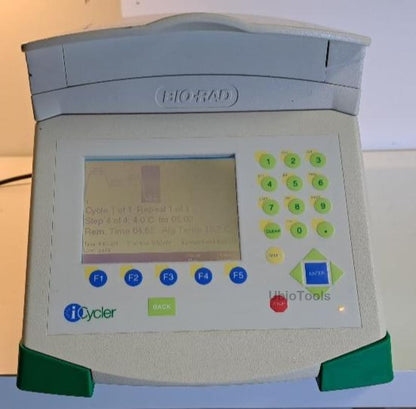

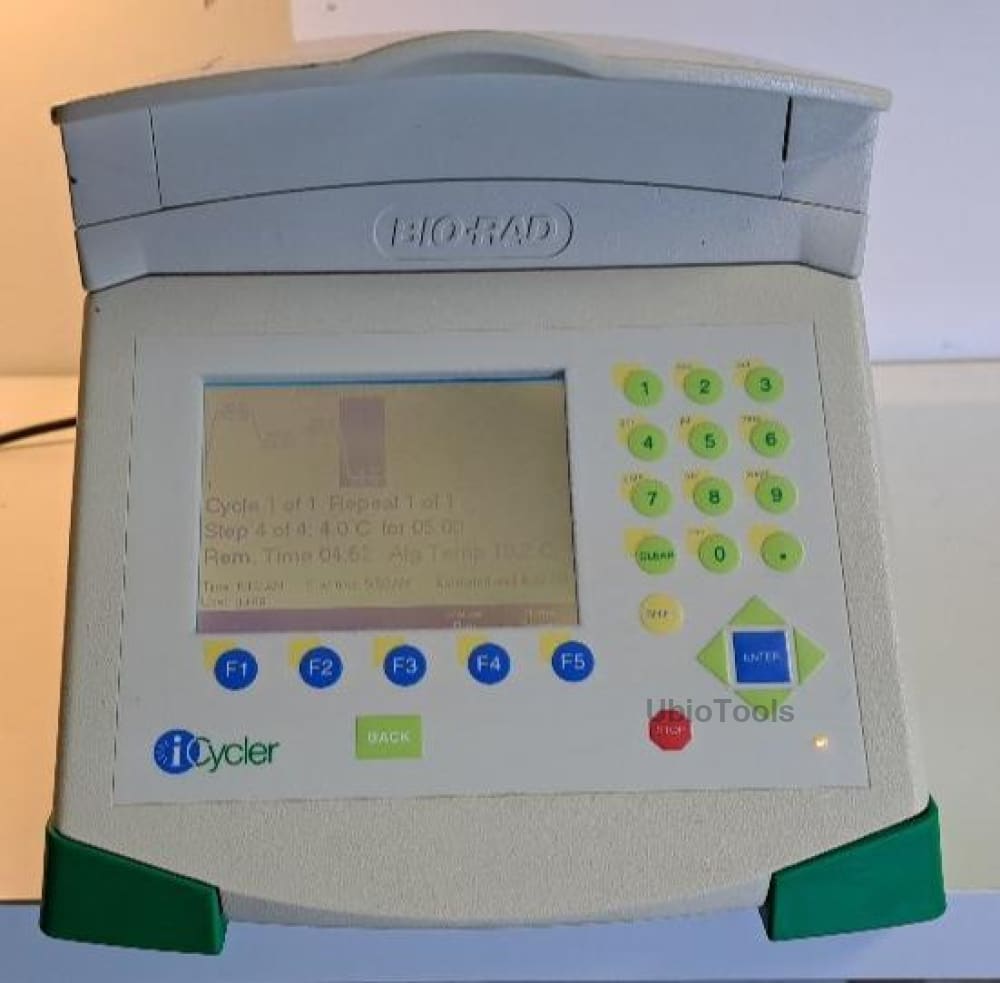

Display LCD Quarter VGA screen with backlight
Chassis Cycoloy ABS plastic

Observations:

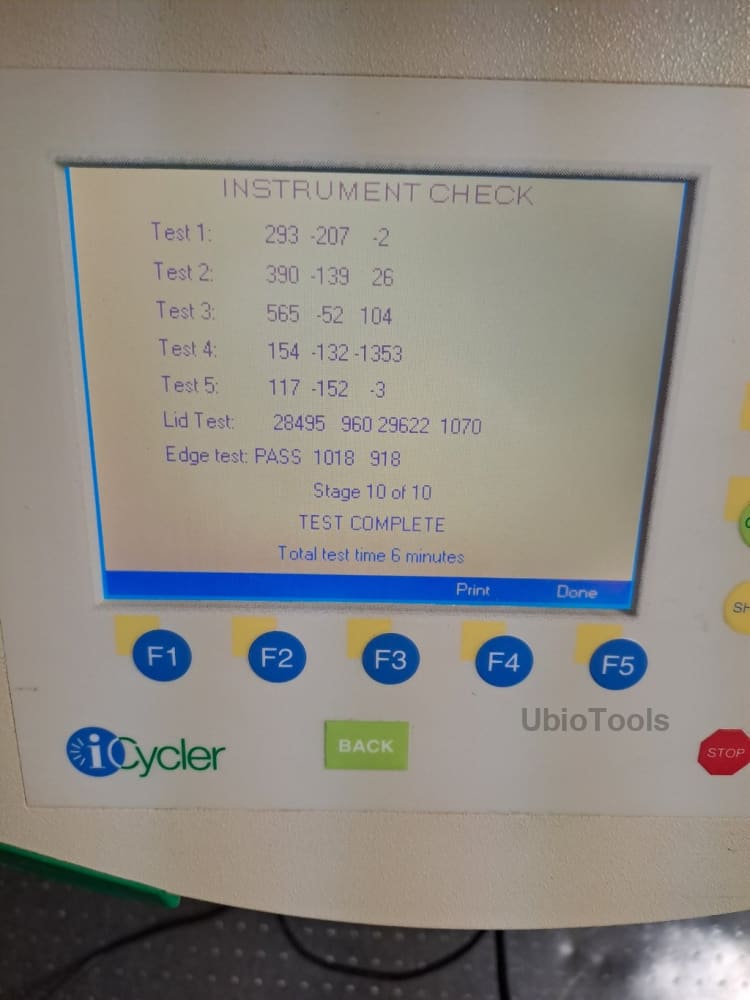

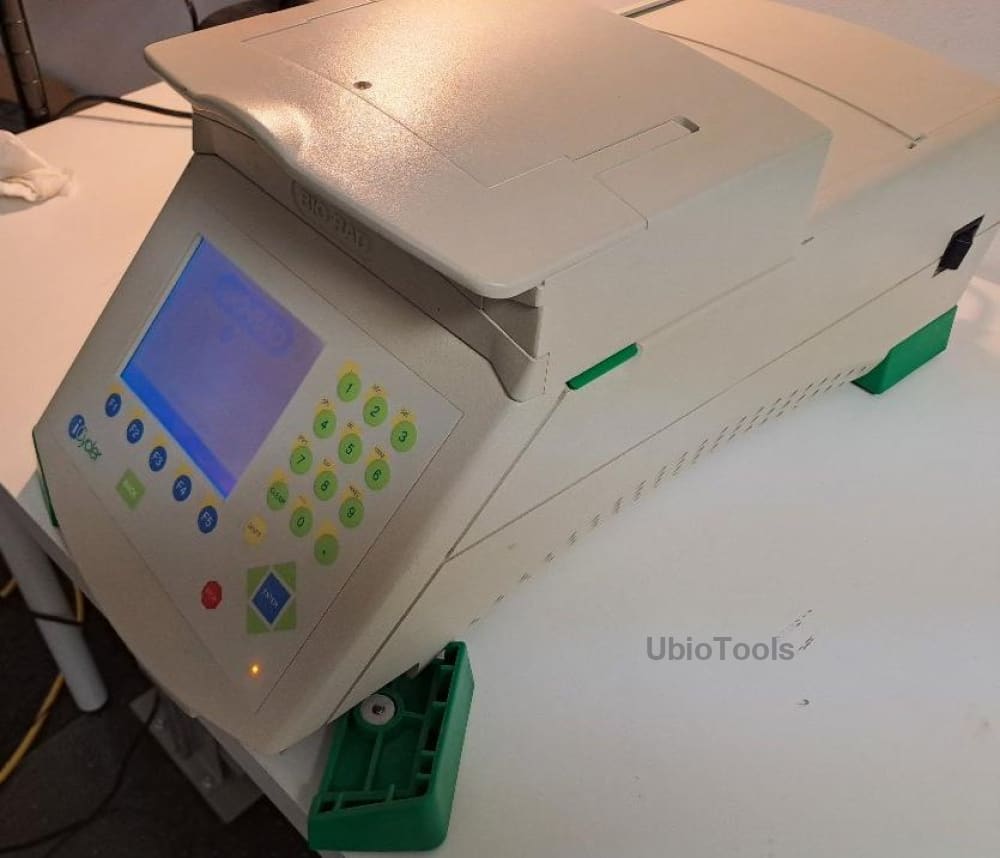

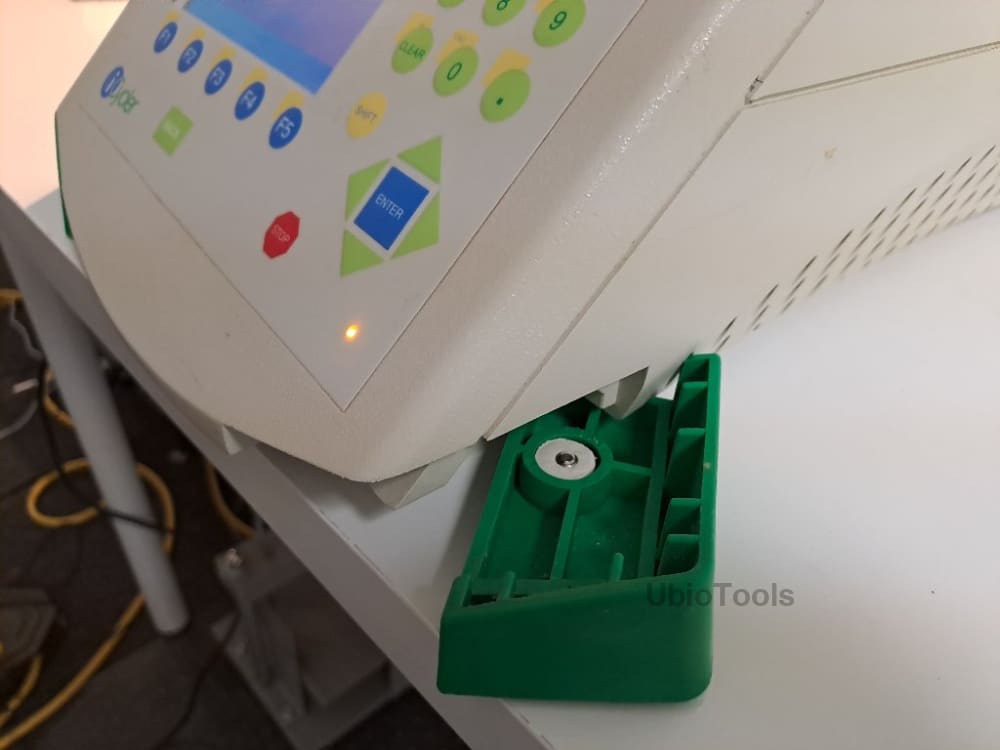

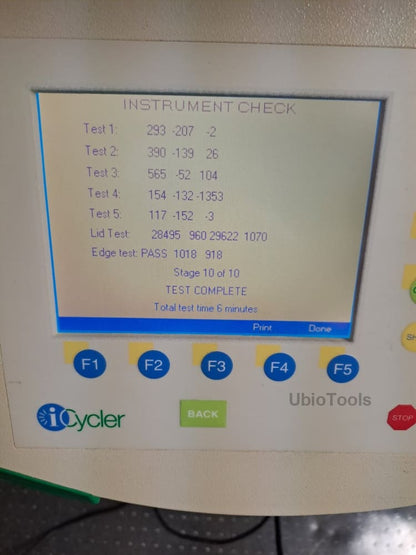

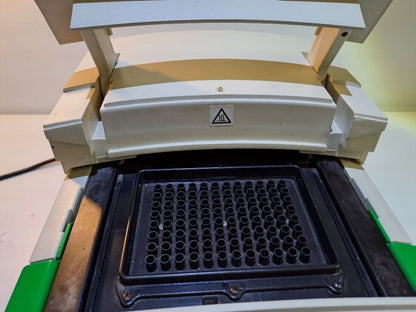

The Thermocycler was tested and passed all the checkpoints. From time to time needs to slightly move the reaction module, when initiating the thermocycler, adjusts the contacts. A rubber foot cannot be screwed. It can be fixed with glue.
We provide manual and service manual
